Painted Steel Modular Prefabricated Horse Stalls

 HUGE SAVINGS on Feeders, Waterers & Tack Room Accessories if Ordered WITH HORSE STALLS!

Call 1-800-335-1880 For More Information on this Discount Offer!

One Piece Construction Horse Stalls - No Posts Necessary!

We can manufacture custom horse stalls to your specifications!

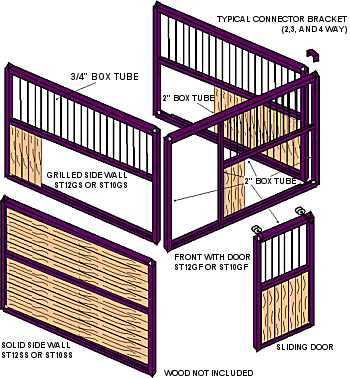

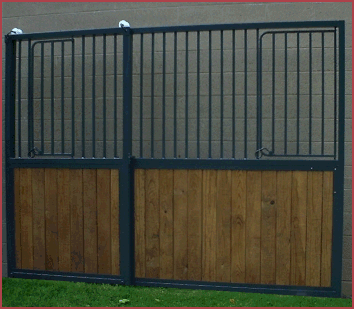

prefab horse stall front Designed so that the stall fronts can be reversed to allow the sliding door position to be left or right. All latches are spring loaded and without protrusions to be safe and horse proof. Heavy brackets (2, 3, or 4 way) lock fronts and sides together and are provided at no extra charge. Stall height is 7½ ft. The stall door is equipped with an anti-liftoff bracket and stay brackets. Each stall front has a swing-out feed door and a swing-out on the stall door which acts as a gossip door.
Door rollers are designed for smooth and quiet operation. Fully welded construction using 2" structural steel for durability with 3/4" square tube grills on 4" centers make this stall portable and strong. Can be used as both a portable stall or set permanently!
Available Colors:
Hunter Green
Black


No fastening of boards is necessary. Simply cut boards to length and drop into channels. Wood is not provided, but 2 x 6 tongue and groove is recommended for sturdiness and appearance. Mininum order of 5 modular sections for free freight.

Insert boards vertically or horizontally, your choice! Fronts are equipped with two swing out doors. One is on the sliding door and the other is on the stationary part of the stall front for feeding.

• All of our combination feeders can be easily installed on the swing out feed door.

• Unique latches eliminate any sharp protrusions and operate with one hand.

• Aesthetic, tough, 2" square tube (16 gauge) frame (equivalent to 2½” round tubing) with 3/4" square tube grill bars (equivalent to 1" round tubing) on 4” centers (3¼” open space).

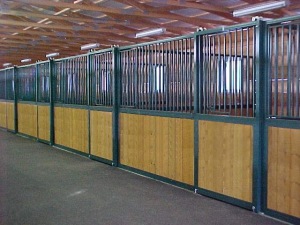

row of horse stalls

Click Here for Assembly Instructions

Now Available!!! Pre-Cut Wood Packages!

 Need help deciding between stall kits or modular horse stalls? Click Here to see the difference.

 10 ft stall front

 ST10GF 10' Horse Stall Front with Sliding Door and 2 Swing outs. $835.00

ST10GF Hunter Green: Add To Cart

ST10GF Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 10 ft stall side wall

 ST10GS 10' Grilled Side Wall. $615.00

ST10GS Hunter Green: Add To Cart

ST10GS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 10 ft solid side wall

 ST10SS 10' Solid Side Wall. $505.00

ST10SS Hunter Green: Add To Cart

ST10SS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 12 ft horse stall front

 ST12GF 12' Horse Stall Front with Sliding Door and 2 Swing outs. $895.00

ST12GF Hunter Green: Add To Cart

ST12GF Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 12 ft stall side wall

 ST12GS 12' Grilled Side Wall. $650.00

ST12GS Hunter Green: Add To Cart

ST12GS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 12 ft solid side wall

 ST12SS 12' Solid Side Wall. $535.00

ST12SS Hunter Green: Add To Cart

ST12SS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 14 ft stall front

 ST14GF 14' Horse Stall Front with Sliding Door and 2 Swing outs (sectional- 10' front with a modular interlocking 4' wide panel). $1185.00

ST14GF Hunter Green: Add To Cart

ST14GF Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 14 ft side wall

4' modular extension panel can be mounted on right or left.

 ST14GS 14' Side Wall (sectional- 10' wall with a modular interlocking 4' wide panel). $965.00

ST14GS Hunter Green: Add To Cart

ST14GS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 14 ft prefab wall

4' modular extension panel can be mounted on right or left.

 ST14SS 14' Solid Side Wall. (sectional- 10' wall with a modular interlocking 4' wide panel). $755.00

ST14SS Hunter Green: Add To Cart

ST14SS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 16 ft stall front

The same as the 14' front shown except the main stall panel is 12' wide with the 4' modular extension panel.

4' modular extension panel can be mounted on right or left.

  ST16GF 16' Horse Stall Front with Sliding Door and 2 Swing outs (sectional- 12' front with a modular interlocking 4' wide panel).$1245.00

ST16GF Hunter Green: Add To Cart

ST16GF Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 16 ft side wall for horse stalls

The same as the 14' grilled side wall shown except the main stall panel is 12' wide with the 4' modular extension panel.

4' modular extension panel can be mounted on right or left.

  ST16GS 16' Side Wall (sectional- 12' wall with a modular interlocking 4' wide panel). $995.00

ST16GS Hunter Green: Add To Cart

ST16GS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

 16 ft side wall

The same as the 14' solid side wall shown except the main stall panel is 12' wide with the 4' modular extension panel.

4' modular extension panel can be mounted on right or left.

 ST16SS 16' Solid Side Wall. (sectional- 12' wall with a modular interlocking 4' wide panel) $785.00

ST16SS Hunter Green: Add To Cart

ST16SS Black: Add To Cart

5 minimum order for free freight to a business address (2 fronts and 3 side walls for example are 5 sections)

Custom size horse stalls are available! Call us toll free at 1-800-335-1880 for a free quote!
